Our production is subject to permanent quality assurance certified according to EN 3834-2 and ISO 9001 and we offer our customers the following laboratory procedures:
Non-destructive testing
To carry out the non-destructive tests, see the procedures:
- Ultrasonic tests (UT)
- Dye penetrant test (PT)
- Magnetic Particle tests (MT)
- X-ray tests.
Destructive tests
- Stress testing
- Impact testing
- Chemical testing
- Metallographic testing
Hardness test
- Brinell,
- Vickers,
- Rockwell,
- Microhardness
Our special equipment includes:
- Spectrolab M5 21 elements in 3 basis: Fe, Al, Cu
- Granite measurement table – 27 μm precision
- CMM Ghibli Trax-Brown & Sharpe – 2,600 x 1,200 x 1,000 mm – 2.5 μm accuracy

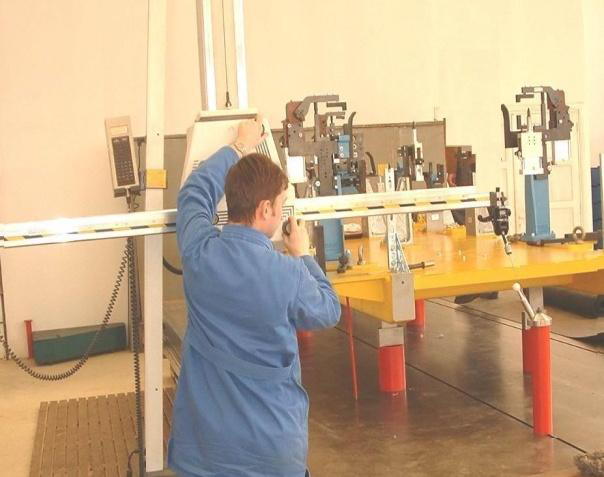

- CMM Stiefelmeyer – 6,000 x 3,000 x 2,000 mm – 2.5 μm accuracy
In-house testers and test equipment certified according to DIN EN ISO 9712 / DIN 473-2 level 2 are available.
Our own Bureau Veritas authorized laboratory performs destructive mechanical tests (tensile and resilience tests) for the purpose of 3.2 certification of materials.
As a large part of Unio SA’s products are destined for the naval market, 3.2 recertification is made under the supervision of an inspector representing a naval register (Bureau Veritas, DNV, RMRS, ABS), depending on the client’s requirement.
A photogrammetric measuring system of the latest technology is used to measure the welded components. This makes it possible to measure and analyze very large components in three dimensions with the highest precision.
